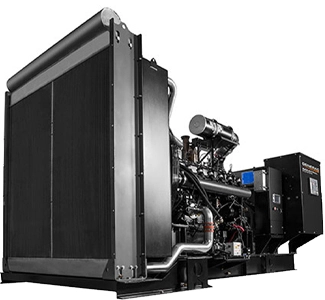

Highest Standby rating Gas Genset in the world - unmatched capability to meet standby power requirements.
Electronic Controller for full time engine control, complete engine management, diagonistic and communication capability.
Complies NFPA-110 norms of starting a taking entire emergency load in less than 10 seconds*(*conditions applied).
Conform to G2 governing class of steady state and transient response and frequency fluctuation limit.
Lowest owning & operating cost; Suitable for large loads in Heavy Industries and Data Centres.
| Prime Power Output |
Engine Manufacturer |
Engine Model |
Gross Engine Power |
Engine Cooling System |
No. of Cylinder and Position | Displacement | Aspiration |
|---|---|---|---|---|---|---|---|
| 750 kVA/ 600 Kw | Generac | G33.9 | 600 bKW | Liquid Cooled | 12, Vee | 33.9 Litres | Turbocharged, air to air cooled |
| Bore x Stroke | Recommended Fuel |
Combustion System |
Compression Ratio |
Total Lubricating Capacity |
Total Coolant Capacity |
Fuel Consumption (m3/hr) | |
| 150 x 160 mm | Pipe Natural Gas | Spark Ignition | 10:00:01 | 120 Litres | 208 Litres | 100% Load : 174.0 75 % Load : 148 50% Load : 104 |
|
| Alternator Rated Power |
Rated Voltage (L-L) |
Frequency | Rated Speed |
Rated Current |
Power Factor |
Poles | Phase |
| 750 kVA / 600 kW | 415 V | 50 Hz | 1500 rpm | 1043.4 amp | 0.8 (lagging) | 4 | 3 |
| Insulation Class | Temperature Rise Limit |
Protection | Voltage Regulation |
Over Load Capability |
Excitation System |
||
| Class H | Class H | IP 23 | 1% | No overload available | Brushless |
| Prime Power Output | 750 kVA/ 600 Kw |
|---|---|
| Engine Manufacturer | Generac |
| Engine Model | G33.9 |
| Gross Engine Power | 696 bKW |
| Engine Cooling System | Liquid Cooled |
| No.of Cylinder and Position | 12, Vee |
| Displacement | 33.9 Litres |
| Aspiration | Turbocharged, air to air cooled |
| Bore x Stroke | 150 x 160 mm |
| Recommended Fuel | Pipe Natural Gas |
| Combustion System | Spark ignition |
| Compression Ratio | 10:00:0.1 |
| Total Lubricating Capacity | 120 Litres |
| Total Coolant Capacity | 208 Litres |
| Fuel Consumption (m3/hr) | 100% Load : 174.0 75 % Load : 148 50% Load : 104 |
| Alternator Rated Power | 750 kVA / 600 kW |
| Rated Voltage (L-L) | 415 V |
| Frequency | 50 Hz |
| Rated Speed | 1500 rpm |
| Rated Current | 1043.4 amp |
| Power Factor | 0.8 (lagging) |
| Poles | 4 |
| Phase | 3 |
| Insulation Class | Class H |
| Temperature Rise Limit | Class H |
| Protection | IP 23 |
| Voltage Regulation | ± 1% |
| Over Load Capability | No overload available |
| Excitation System | Brushless |
